Introducing the Explorer Pro Series
Our most complete ute systems yet—Australian designed and continuously improved through real-world use.
Introductory launch pricing: Available for a limited time at previous V2 pricing.
A compact tray and canopy package designed for owners who want secure enclosed storage while retaining useful open tray space. The package combines a 1680mm Explorer tray, an 800mm lift-off canopy and an under-tray trundle drawer. The removable canopy allows the vehicle to be converted back into a functional ute tray when required.
Package includes
- 1680mm Explorer ute tray
- 800mm two-door lift-off canopy (enclosed or dog-box door)
- Under-tray trundle drawer with lid and gas struts
- Pair of under-tray toolboxes
- Heavy-duty chassis mounting system
- Mudguards
- Integrated rear lighting
- Lift-off canopy legs
Package weight
300.8 kg
Best suited to: Customers wanting a compact canopy with more exposed tray space for larger equipment, materials or occasional loads.
Explorer Pro Series engineering
The difference is not just that Explorer uses 3mm aluminium. Underneath the product is a complete engineered system: 5mm steel chassis rails, gusseted tray bracing, a reinforced canopy frame, upgraded doors, an integrated false floor and internal mounting channels.
Even the headboard, under-tray boxes and rear lighting have been designed to work together. That is what separates an Explorer system from a generic aluminium tray and box.
Engineered foundation
- 5mm steel chassis rails and mounting system
- Australian-engineered tray bracing
- Strategically positioned crossmembers
- Gusseted reinforcement in high-load areas
- Fully welded structural frame
Reinforced canopy construction
- Reinforced internal frame structure
- Upgraded, more rigid door construction
- Internal structural reinforcement
- Designed to control movement and flex
- Improved door alignment and seal compression
Integrated fitout system
- Integrated false-floor system
- Protected space for wiring and fixings
- Integrated strut-channel mounting system
- Easier installation of drawers, shelving and electrical equipment
- Fitout components can be repositioned without repeatedly drilling the canopy
Purposeful exterior design
- Cab-matched headboard profile
- Double-tapered under-tray toolboxes
- Modular rear tail-light housings
- Vehicle-integrated tray profile
- Replaceable and serviceable lighting assemblies

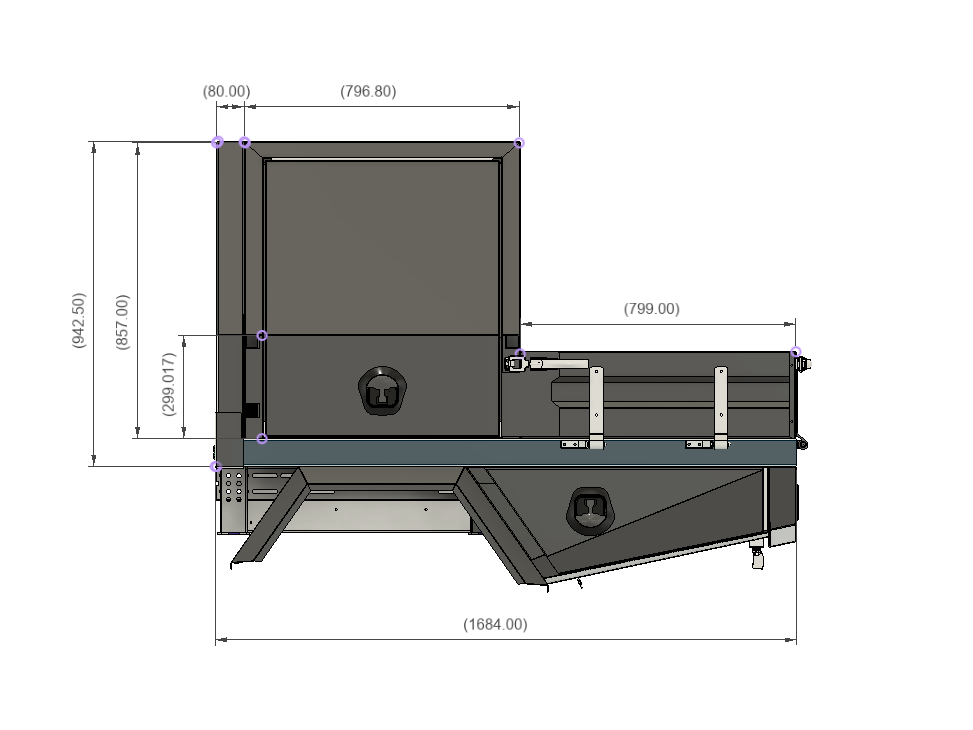

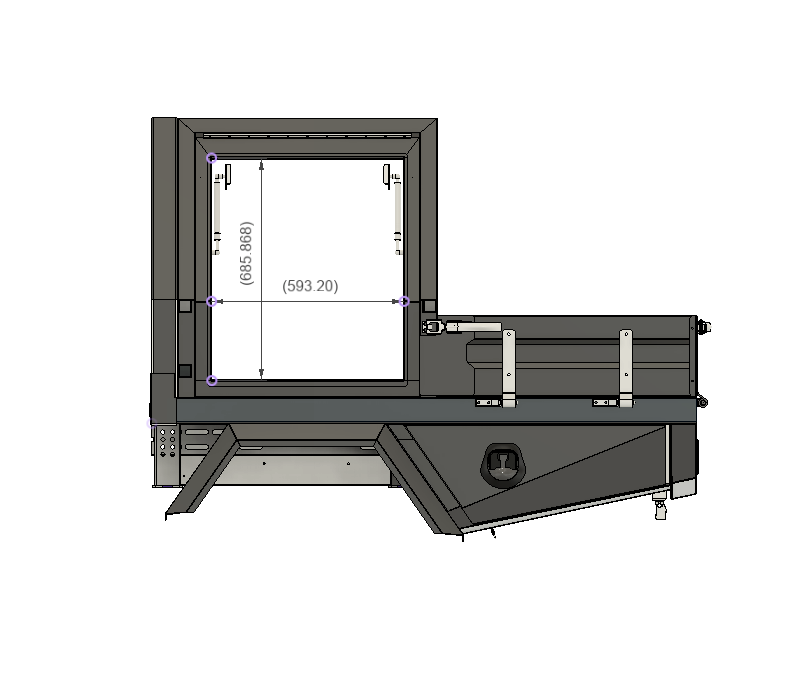

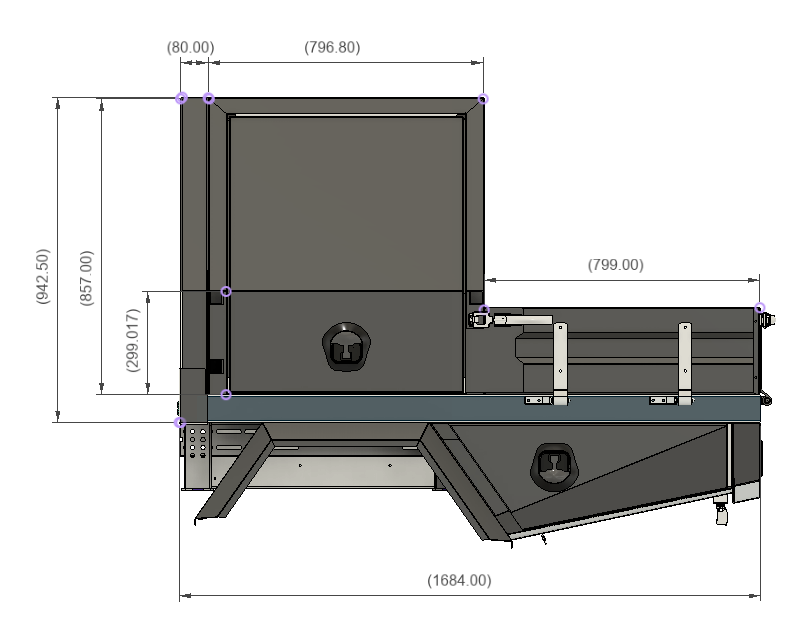

Illustrative product renders. Final installation details may vary by vehicle and application.
Explorer Pro Series specifications
- Tray body: 1680mm long x 1770mm wide
- 3mm 80 x 50 aluminium SHS tray frame
- 75mm C-channel internal bracing
- 3mm checker-plate top deck and backboard
- Pair of 880mm under-tray toolboxes
- 860mm headboard
- Rear 355 LED driving lights with 11-ohm resistor
- Heavy-duty universal chassis mounting brackets
Not included in the advertised package price
- Tray sides
- Roof racks
- Spare-wheel carriers
- Rear ladders
- Jerry-can holders
- Internal canopy drawers, shelving and fitout accessories
- Vehicle-specific camera and sensor integration
- Fuel-filler hoses and brackets
- Installation and freight unless stated
Suited makes and models
Ford Ranger, Toyota Hilux, Isuzu D-Max, Mitsubishi Triton, Mazda BT-50, Nissan Navara, Holden Colorado and GWM Cannon.
DIY installation or professional installation is required. The tray includes mounting rails and heavy-duty universal chassis brackets.
